Today's Adobe Illustrator tutorial will walk you through creating a nice greeting card for the upcoming Christmas
holiday. In order to create nice, colorful presents to stuff a
Christmas sock we will combine different kinds of tools, such as; the Pen Tool, Mesh Tool, Ellipse Tool and the Rectangle Tool.
Besides that we will have the opportunity to mix and match some vivid
colors and gradients in order to create a catchy illustration to suit
our needs. We will have a great fun exploring some nice techniques
during the creation process. So, get ready to create a nice Christmas illustration.
This is how the final product will look.
Creating the Sock

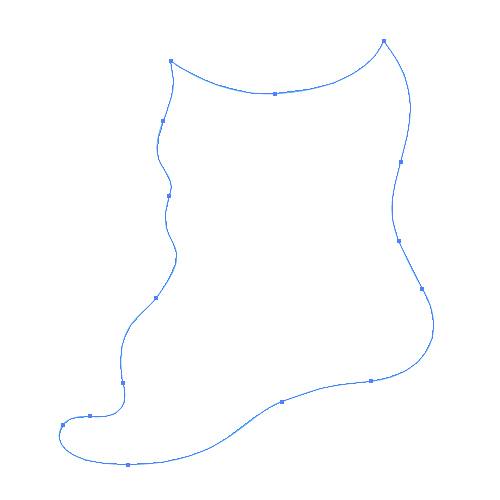

For the basic shape of the Christmas sock we will be using a Pen Tool (
Grab it from the Tool Panel and try to draw the shape of a distorted
sock. Don't forget, the sock looks little bit distorted because it is
full of presents. Feel free to experiment with the shape, trying to
achieve the look like there is actually something inside the sock.
To achieve the look of a distorted Christmas sock full of presents we will be using a Mesh Tool. It will allow us to play around with the shape of the sock by creating interesting shadows and highlights.

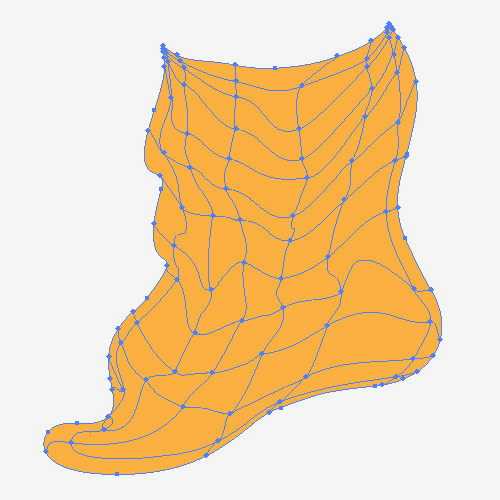

Grab the Mesh Tool (
U) and start adding
the anchor points. You don't have to add all anchor points at once.
After applying the colors you'll be able to see the illustration more
clearly and to decide whether to add or remove some anchor points. All
anchor points are editable. You can change their positions and the
length of the paths between anchor points. While you are doing this
think about all the fabric wrinkles you are intending to create.
After adding all the anchor points grab the Direct Selection Tool (
from the Tool Panel and adjust the position of the anchor points and
the angle of their handles. This way you'll be able to change the
position of the paths, which will affect the spreading of the colors
which we've applied to a particular anchor point.

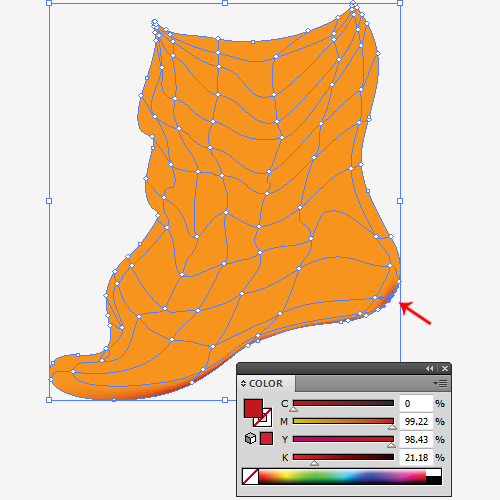

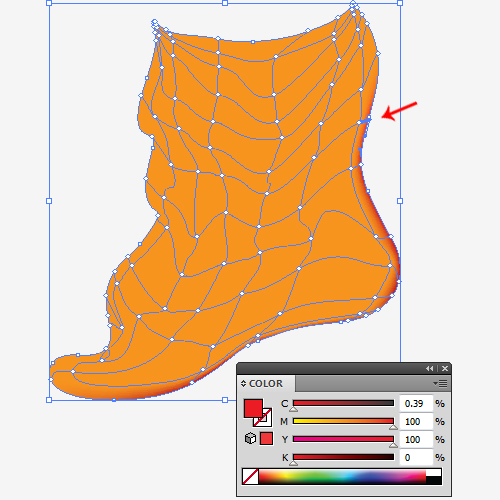

On the following pictures you can monitor applying colors process.
The animation below is showing the rest of the coloring process.
Feel free to adjust the position of all the anchor points after applying colors, if needed.
Creating the Upper Part of the Christmas Sock
Now we will try to create the fluffy upper part of the Christmas sock. To do that we will use the Arc Tool.

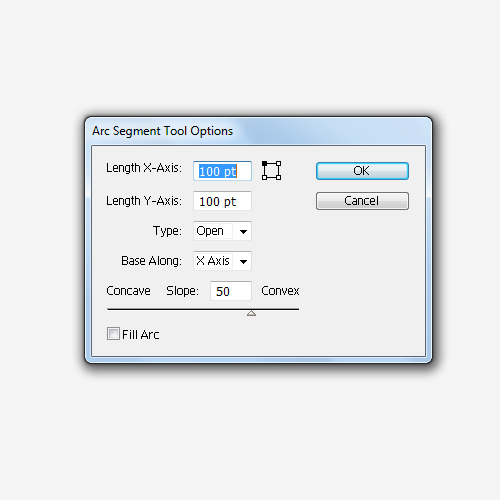

Grab the Arc Tool from the Tool Panel and click somewhere on the Artboard. In the
Arc Segment Tool Options box just hit the Ok button (don't change anything).
Set the Stroke color to white
and make sure to create many copies of the path. Move them around to
form the fluffy part of the sock. You should end up with something like
Place the fluffy part we have just created on the top of the sock.
Creating the Presents
In this part of tutorial we will create the elements to 'fill' the Christmas sock with. First we will create the Christmas ball.

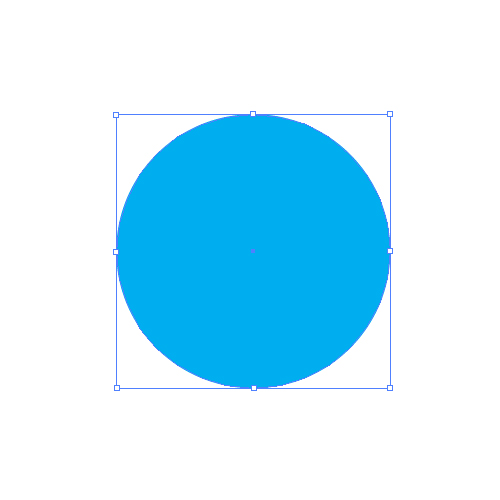

For the basic shape of the Christmas ball we will be using the Ellipse Tool (
L). Holding the Shift key on the keyboard create a circle.

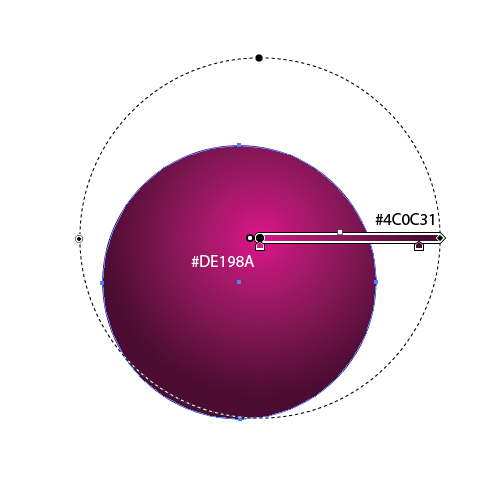

Let's apply a nice radial gradient to our circle. Feel free to use
any color combination you like. We will use a nice purple gradient.

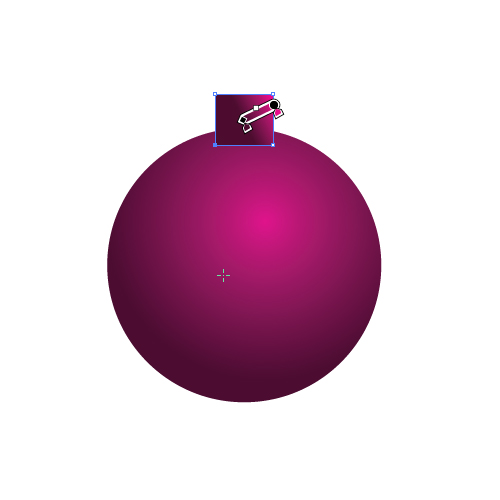

Grab the Rectangle Tool (
M) from the
Tool Panel and create a rectangle as it is shown in the picture below.
Use the same radial gradient we have used in the previous step.
We will need to use the Rectangle Tool (
one more time for the top of the Christmas ball. Create another
rectangle, a bit larger, but make sure to make the upper part of the

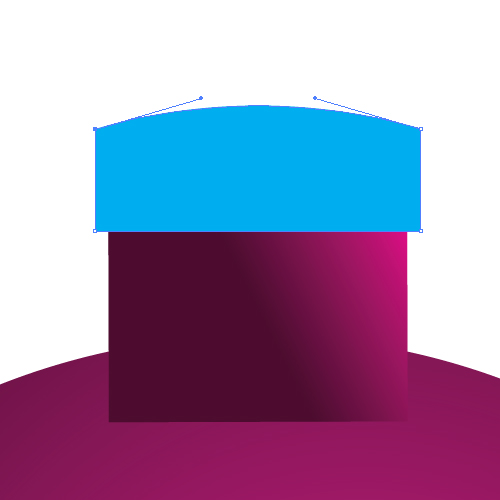

rectangle a bit curvy. To achieve that just grab the Direct Selection Tool (
from the Tool Panel and pull the handles of the endpoints upwards, as
it is shown in the picture below. This will create a nice curvy side of
Now grab the Ellipse Tool (
L) again and create a circle. Holding the Alt / Option
key on the keyboard click on the circle and drag it to the right. It
will create a copy of the circle. Don't forget to hold the Shift key on the keyboard for the straight dragging. Repeat this step four more times.
In order to create an equal distance between the circles select them all and under the Align Panel hit the Horizontal Distribute Space. You should end up with something like this.

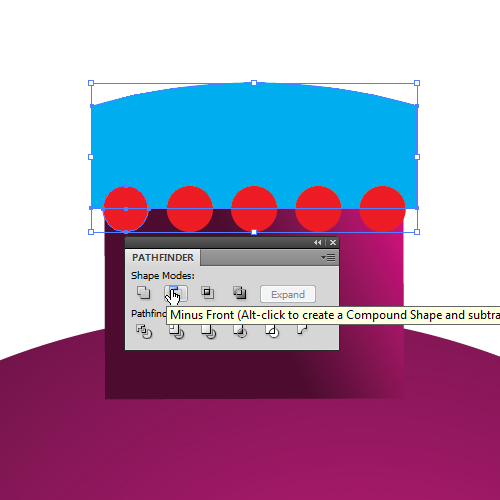

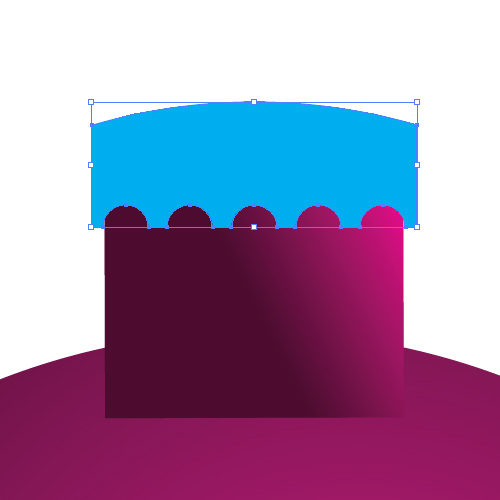

Select the blue shape and one of the circles and under the Pathfinder Panel hit the Minus Front button. Repeat this step with the rest of the red circles.
You should end up with something like this.

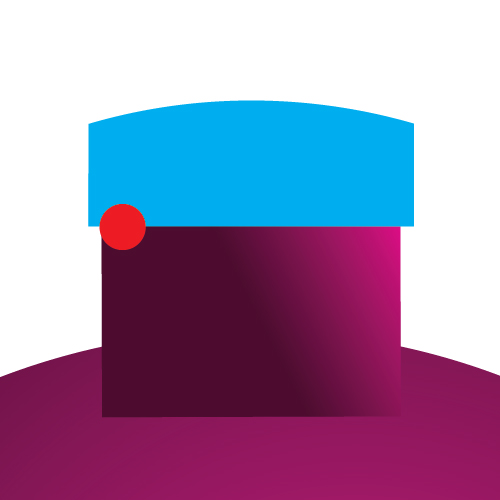

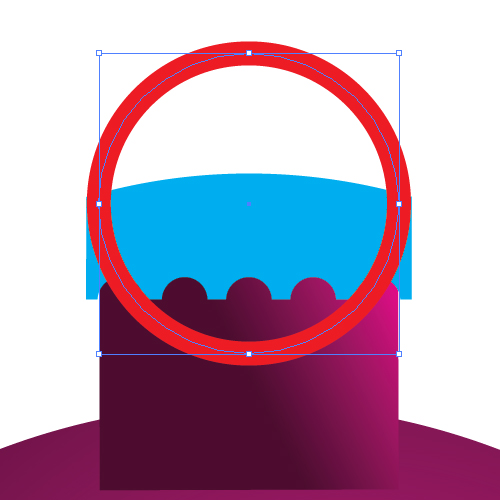

Now, grab the Ellipse Tool (
L) from the Tool Panel and create another circle. Remove the Fill color and set the Stroke color to any color you like. Set the stroke to

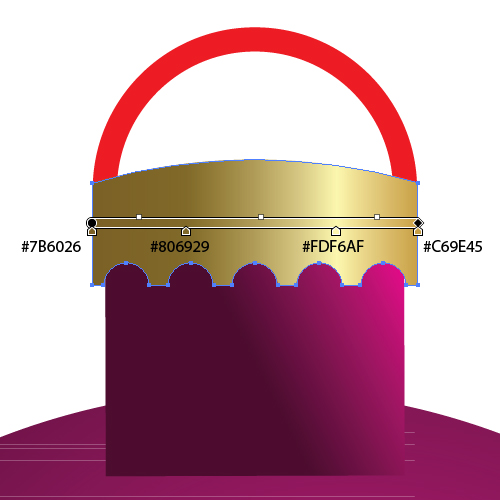

Let's apply some nice golden gradients to the upper part of the
Christmas ball . This will give our ball a fancy look. But first we have

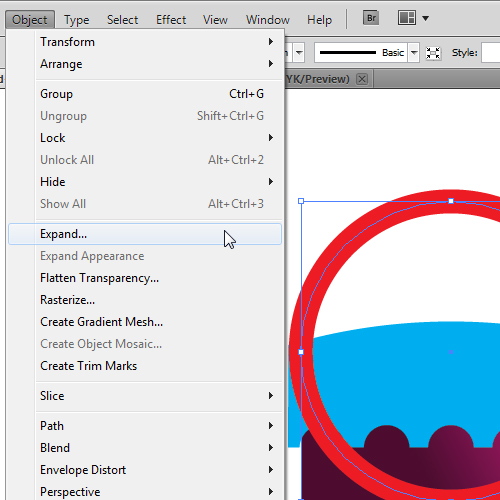

to turn the red circle into an editable path. Select the red circle and
under Object select Expand and send the ring to the back (
Shift + Ctrl / Cmd + [). This way we will hide the lower part of the ring we actually don't need.

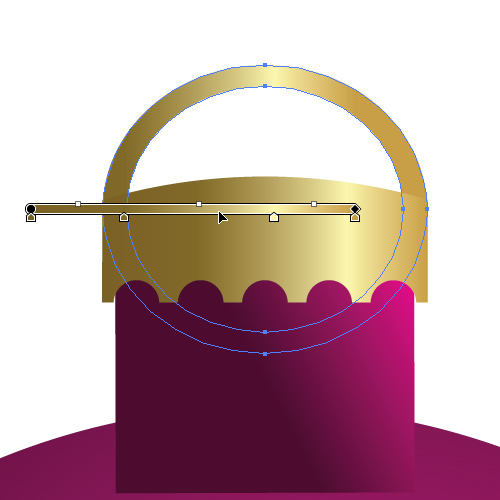

In the following pictures you will find the information about applying a golden, linear gradient.

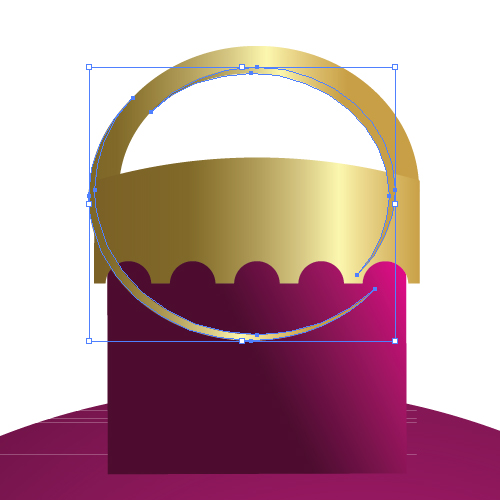

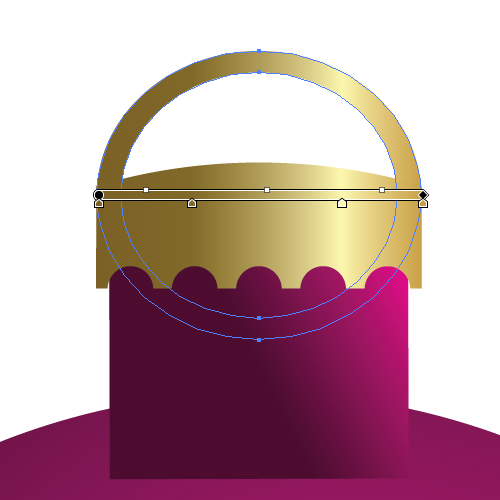

For the handle of the Christmas ball use the same linear gradient, just move gradient more to the left (to do that, select the Gradient Tool (
G) from the Tool Panel and after applying the gradient grab the slider and move it to the left).

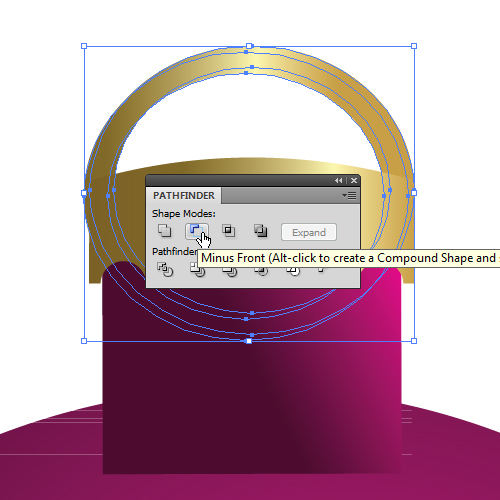

Ctrl / Cmd + C, Ctrl / Cmd + F) the handle twice and nudge one of the copies
1 pixel down and to the left. Select both copies and under the Pathfinder Panel hit the Minus Front button (just make sure that the nudged copy is below the copy we didn't move).
You should end up with something like this.
Shift + Ctrl / Cmd + G) the new shape and delete the lower part. Under the Gradient Panel make sure to click on the
Reverse Gradient in order to change the color order inside the gradient.
This way we've created a depth for the handle. Just make sure to
place the new shape behind the golden handle. You should end up with
something like this.
Now we have to do something with the part of the Christmas ball
between the actual ball and the upper part. You will all agree that it
shouldn't be left like that.
One of the things we might do is to hide it with a nice blue bow.
There are many different ways to create a nice bow. Just use your
imagination and try to be creative.
Grab the Pen Tool (

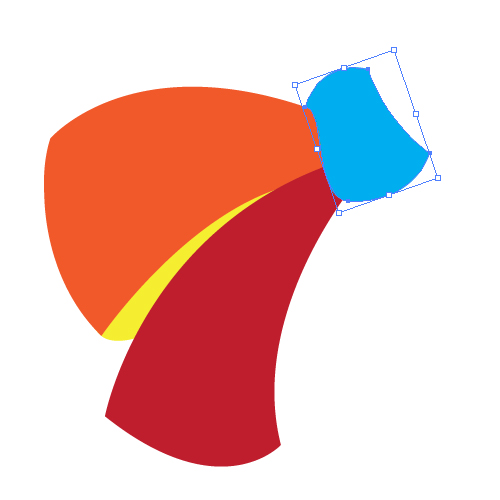

P) from the Tool Panel and draw the shapes as shown below.
These are the basic shapes we will need. With some nice gradients and
additional shapes we will create a nice blue bow that will help us
complete our Christmas ball.

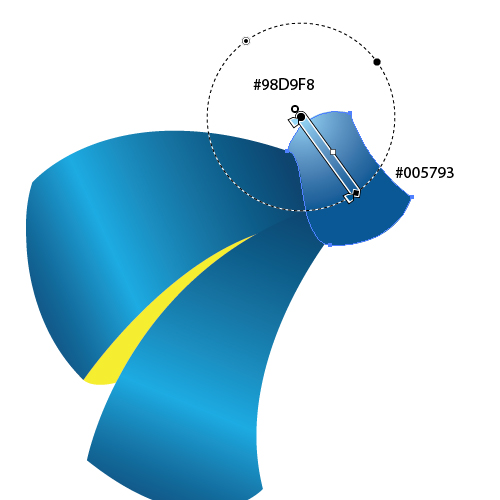

Use the radial gradient for the knot. We will try to emphasize the upper part of the knot with the light blue color.

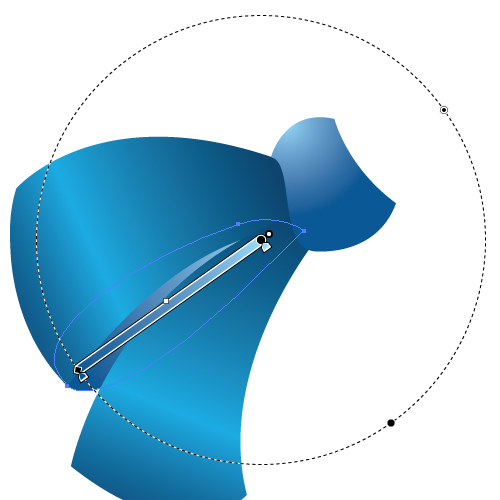

Use the same radial gradient for the inner part of the bow as well.
Select all the elements besides the knot, and under Object select Transform > Reflect. Set the Axis to
Vertical and hit the
Copy button. Scale down the copied elements a bit and adjust the angle and the position, just like in the picture below.

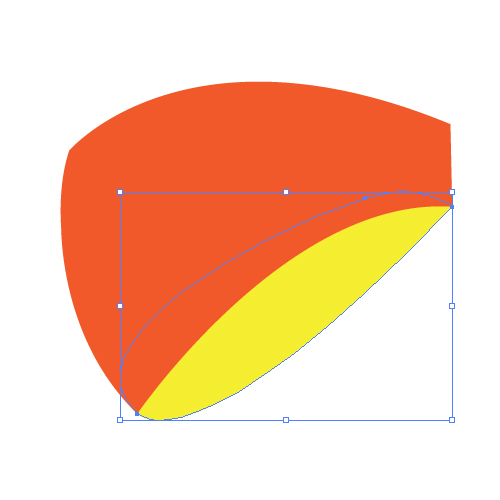

Now we have to add some details in order to make the bow more interesting.
First, we will create a thickness for the fabric. For each part of the bow use the same technique.
Ctrl / Cmd + C, Ctrl / Cmd + F) the shape twice that you want to give some thickness. Nudge one of the copies
1 pixel (downwards, upwards, right or left, depends on the position of the shape). Select both copies and under the Pathfinder Panel hit the Minus Front button. In the picture below you can see the improvement we have achieved with this technique.
There is one more thing we can do. We can create some nice yellowish stripes which can make our bow even more interesting.

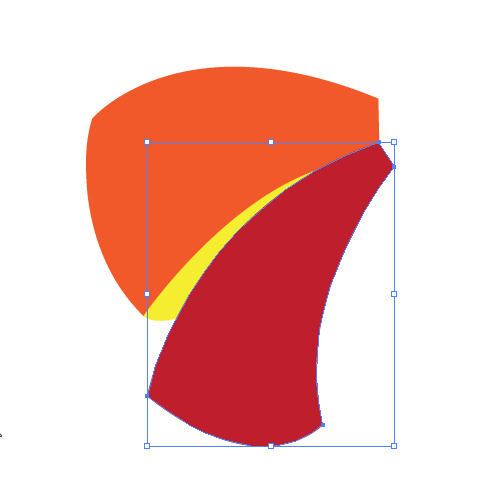

Grab the Pen Tool (
P) from the Tool Panel and create a curved paths as is done in the picture below.
It might look a little bit confusing like this but in the next few steps we will make it more clear.
First we need to turn the paths into editable shapes. To do that, select them all and under Object select Expand.

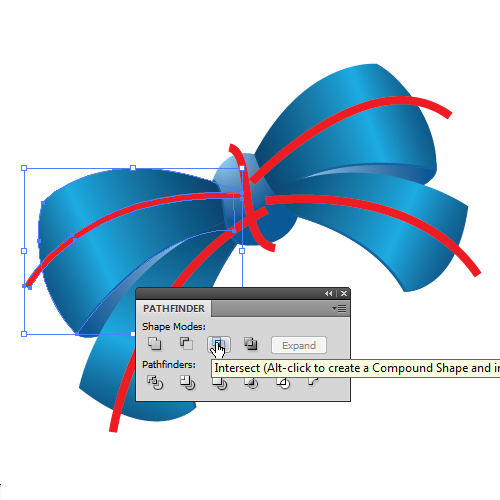

Now we need to crop them. Duplicate (
Ctrl / Cmd + C, Ctrl / Cmd + F) the blue shape underneath the red stripe. Select the copy we have just made and the red stripe and under the Pathfinder Panel hit the Intersect button.
Repeat this step for the other red stripes as well. You should end up with something like this.

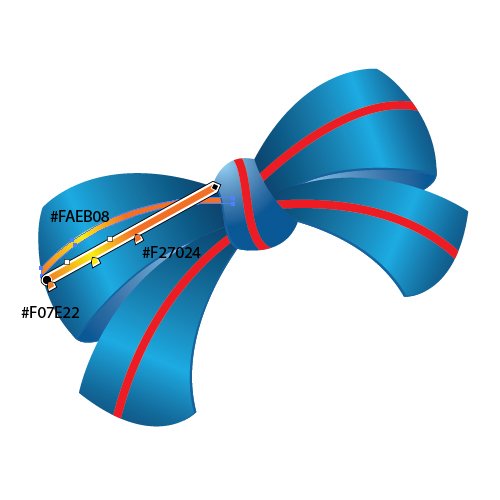

And now we will apply a nice linear gradient to our stripes.
Repeat this step to complete the other stripes as well. Use the same
gradient, just make sure to match the highlighted part of the stripe
with the rest of the bow. Group (
Ctrl / Cmd + G) all elements of the bow.

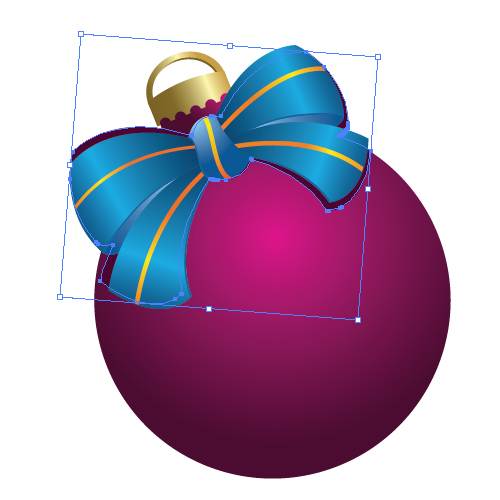

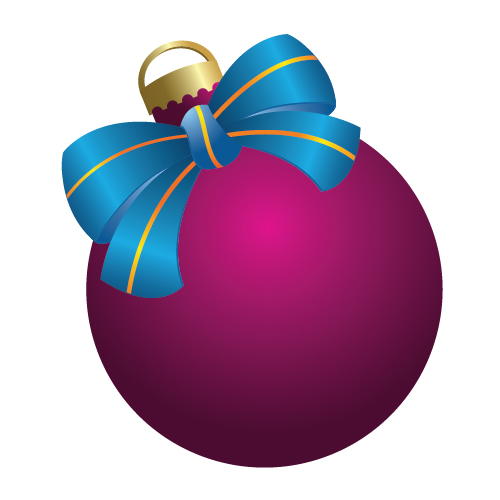

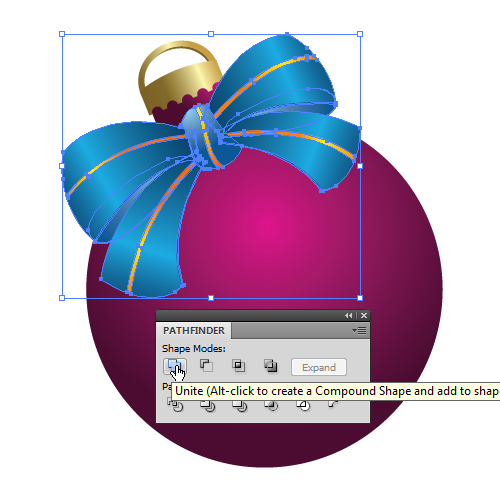

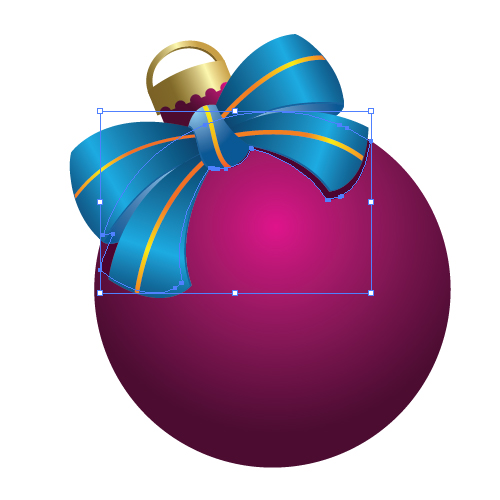

Place the bow on the Christmas ball, just make sure to hide the flaw the best you can.
Ctrl / Cmd + C, Ctrl / Cmd + F) the bow. Ungroup (
Shift + Ctrl / Cmd + G) the copy and under the Pathfinder Panel hit the Unite button.
Set the Fill color of the new shape to
#4C0230, rotate a bit, move around and make sure to place it underneath the actual bow.
Select the basic shape of the Christmas ball and duplicate it (
Ctrl / Cmd + C, Ctrl / Cmd + F). Select the copy we have just made and the purple shape of the bow and under the Pathfinder Panel hit the Intersect button. It will create the shape of a shadow that the bow is casting on the Christmas ball.
Creating a Candy Cane

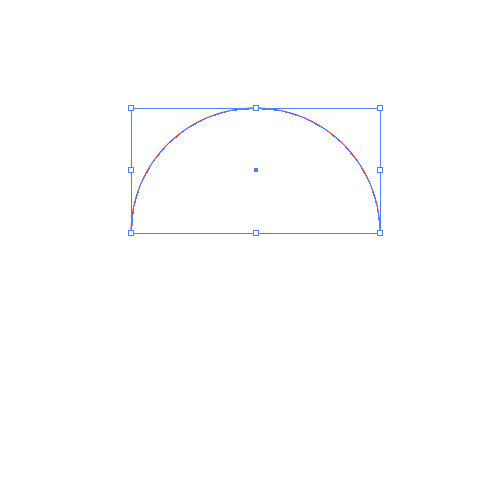

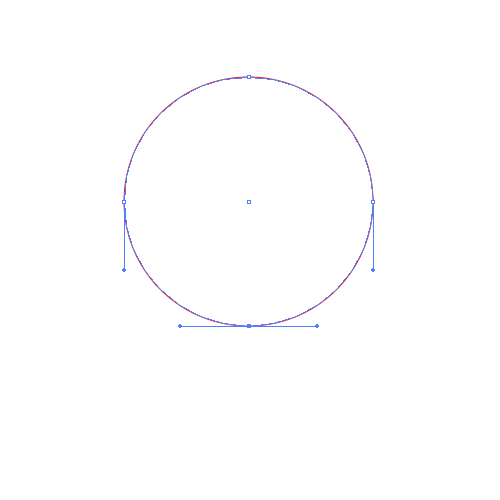

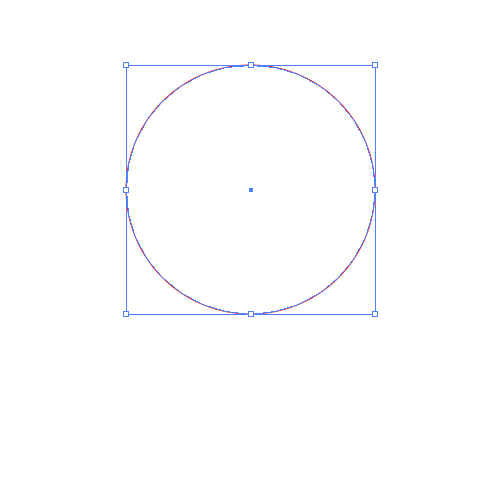

Grab the Ellipse Tool (
L) from the Tool Panel and create a circle. Remove the Fill color and set the Stroke color to any color you like.
With the Direct Selection Tool (
A), select the bottom Anchor point and hit the delete key on your keyboard. You should end up with something like this.
Now select the Line Segment Tool (

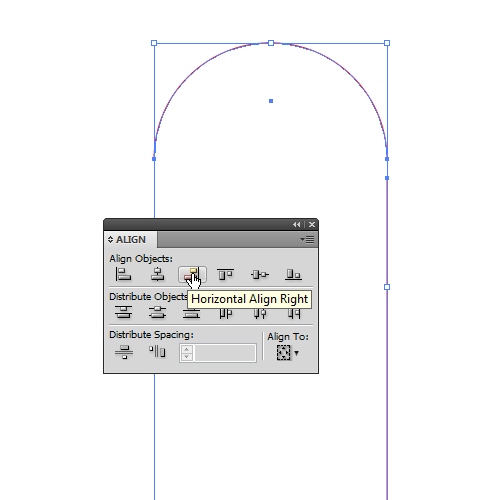

/) and draw a vertical line. Select both objects and in the Align Panel hit
Horizontal Align Right.

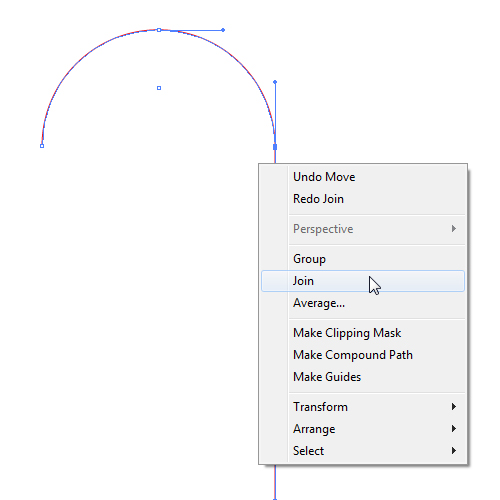

Hit the up arrow on the keyboard until the vertical lines meet the arc. With the Direct Selection Tool (
A) select the end points of both paths and under the right click select Join.

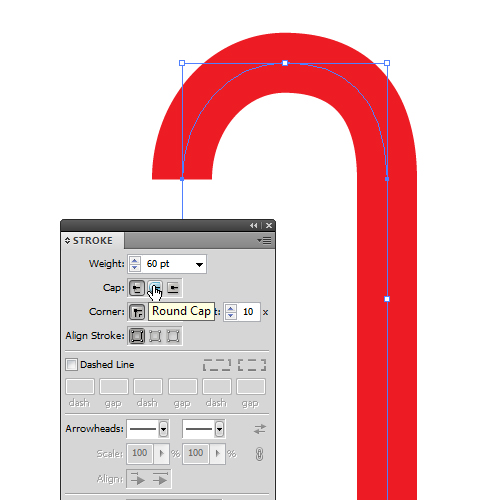

Now we need to set the thickness of the candy cane. Set the Stroke to
50 pt and under the Stroke Panel hit the Round Cap button. It will make the endpoints of the Candy Cane round.

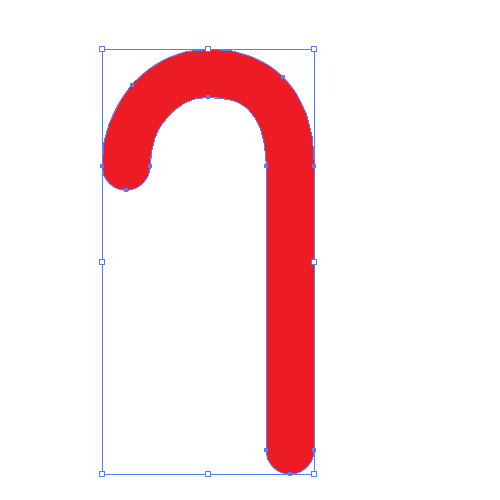

Under Object select Expand in order to turn the Candy Cane into an editable shape. You should end up with something like this.
Creating the Stripes
This part of the creation process is quite simple. All we have to do
is to create white and red stripes and to make sure to make them look as
though they curve around the Candy Cane.

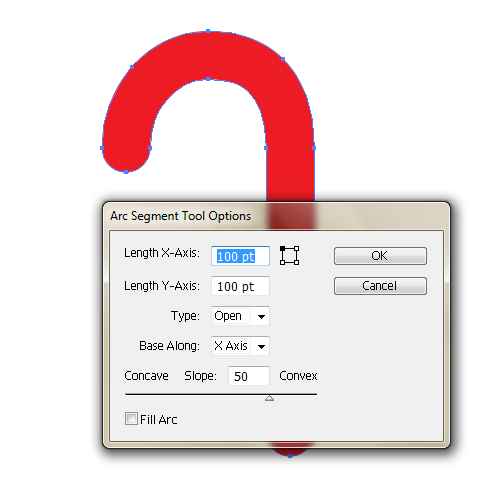

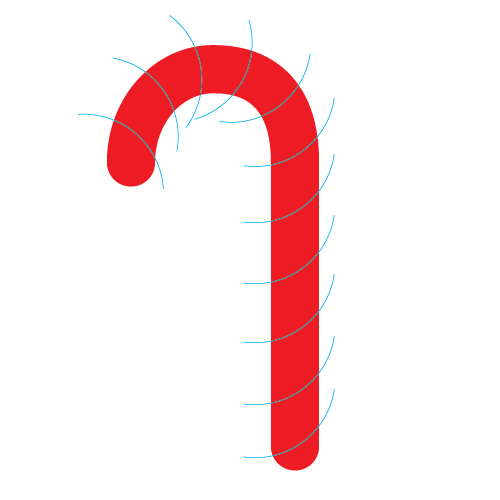

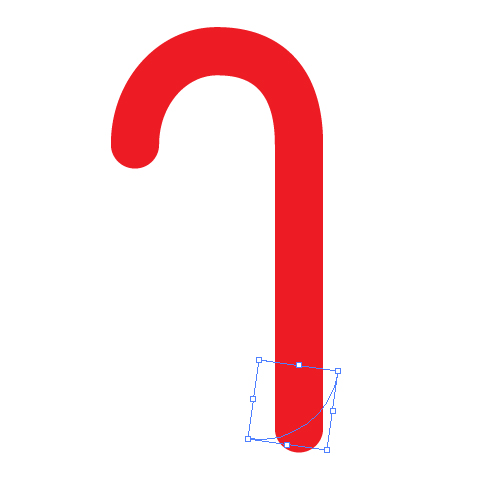

Grab the Arc Tool and click somewhere on the Artboard. It will bring up a dialog box like this.
Do not change the settings in the
Arc Segment Tool Option box and hit the OK button. It will create an arc. Rotate it and place it as it shown in the picture below.
Holding the Alt / Option key on the keyboard click on the arc and drag it upwards (don't forget to hold the Shift
key on the keyboard for the straight dragging). Feel free to rotate
some of the arcs if needed. Repeat this step until you get something
Select all the elements and under the Pathfinder Panel hit the Divide button. It will divide our Candy Cane into the small segments whose colors we'll change to white and red.
Shift + Ctrl / Cmd + G) the candy cane and get ready to apply some nice linear and radial gradients.
Applying Color Gradients to the Candy Cane
We will try to achieve a semi-realistic look by using some very nice
color gradients. The most important thing is to highlight the middle
part of the Candy cane. This way we will simulate the oval look of the
cane. For curved parts of the candy cane we will be using a radial

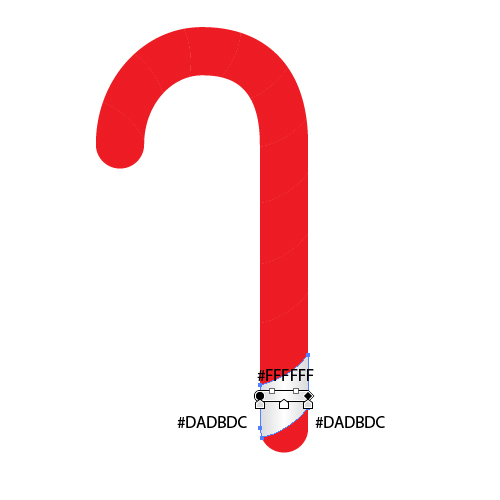

To the white parts of the candy cane we will apply a gray - white - gray linear gradient.
Apply the same gradient to the other white parts of the candy cane as

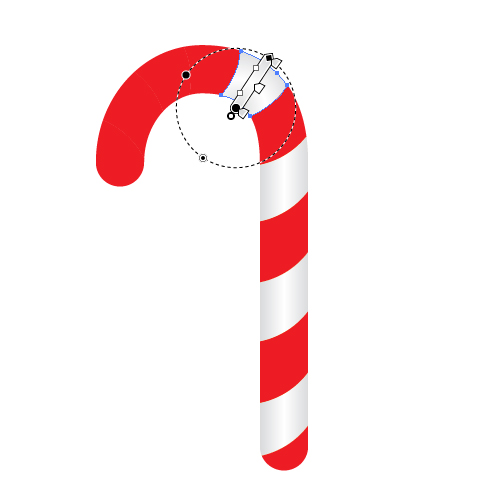

well. For the curved part use a radial gradient with the exact same
You should end up with something like this.

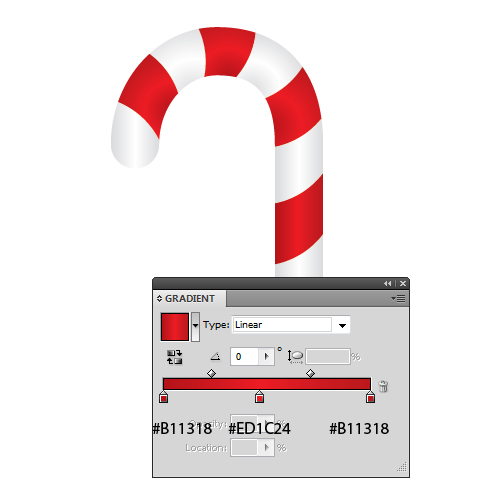

Let's do the same thing for the red parts of the candy cane. Apply a
red linear gradient for the straight parts of the candy cane, and a red
radial gradient for the curved parts.
Our candy cane is done. We can add a small detail like a colorful bow to make it look more interesting.
Next Stop: Mistletoe
Christmas wouldn't be Christmas without a little mistletoe. This is
the reason why we will include it in our illustration. The creation
process is quite simple, all we have to do is create a few berries and
some nice green leaves.
Let's start with the leaves. For the shape of the leaf we will be using the Pen Tool (
P). Try to draw the shape as shown below.

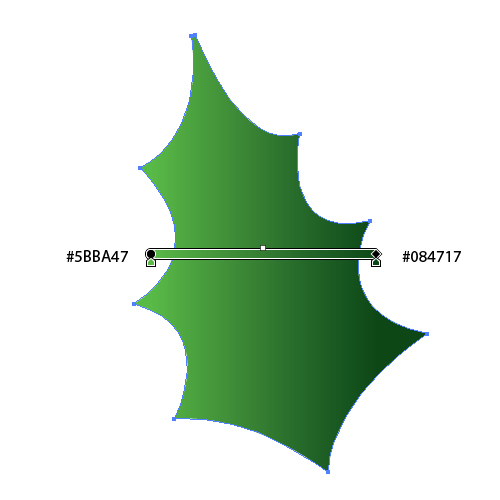

Remove the Stroke color and apply a nice green linear gradient.

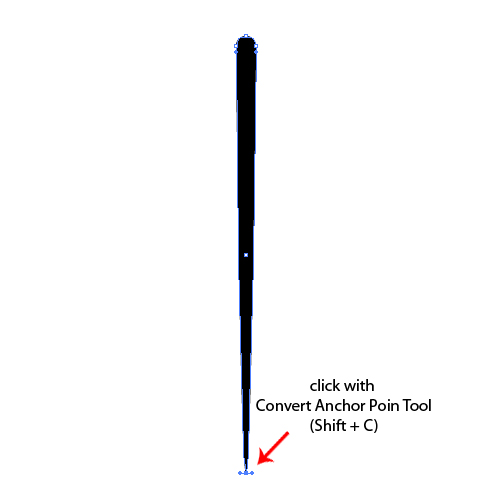

Let's "divide" the leaf. Grab the Ellipse Tool (
L) from the Tool Panel and create a small circle. With the Direct Selection Tool (
A) select the lower anchor point of the circle, and holding the Shift key on the keyboard drag that anchor point downwards (we are holding the Shift key for the straight dragging). In order to create a sharp corner, grab the Convert Anchor Point Tool (
Shift + C) from the Tool Panel and click one the lower anchor point.

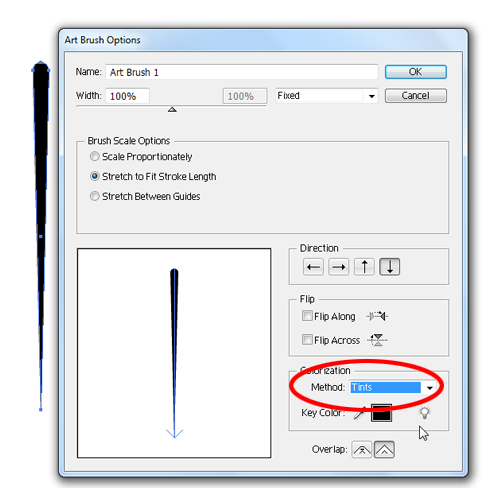

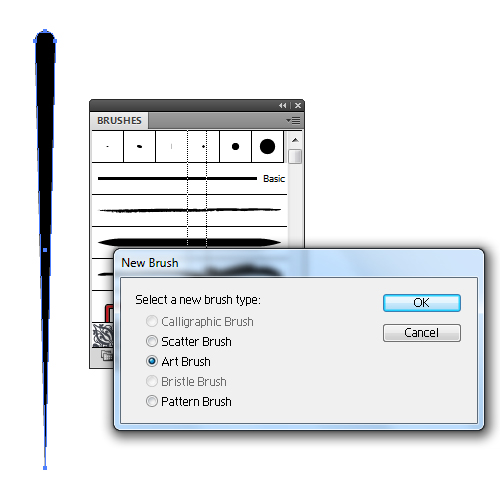

Grab the shape we have just created and drag it to the Brush Panel. In the New Brush dialog box select Art Brush and hit
Make sure to set the Colorization Method to Tints. This way we'll be able to change the color of the brush without expanding the brush.

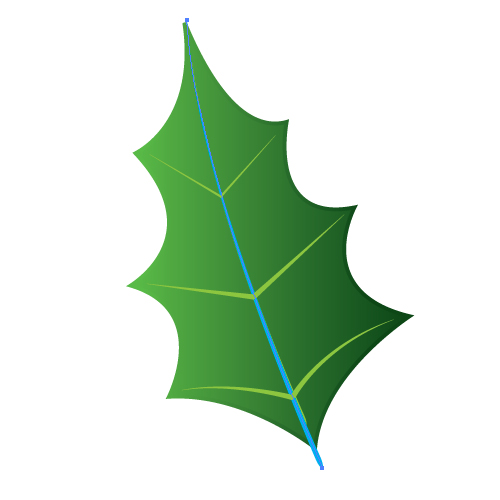

Now we have created a brush that we'll apply to some paths. Grab the Pen Tool (
P) from the Tool Panel and create few paths, just like it's shown in the picture below.
Now apply the brush, that we have created in the previous step, to
each individual path. Adjust the position of the anchor points, adjust
the stroke if needed and set the Stroke color to

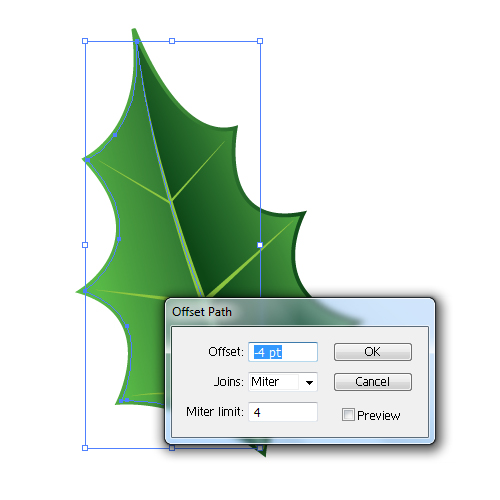

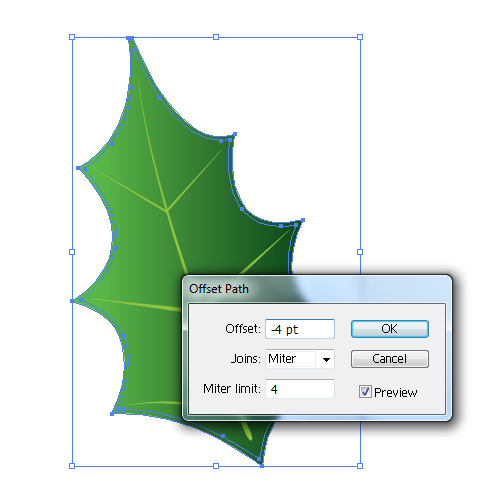

Select the shape of the mistletoe and under Object select Path > Offset Path. Set the value for Offset to
Select the middle path we created in the previous step and duplicate it (
Ctrl / Cmd + C, Ctrl / Cmd + F). Grab the Direct Selection Tool (
from the Tool Panel and move the end points as it is in the picture
below. This way we've created a path that will help us divide the
smaller shape of the mistletoe.

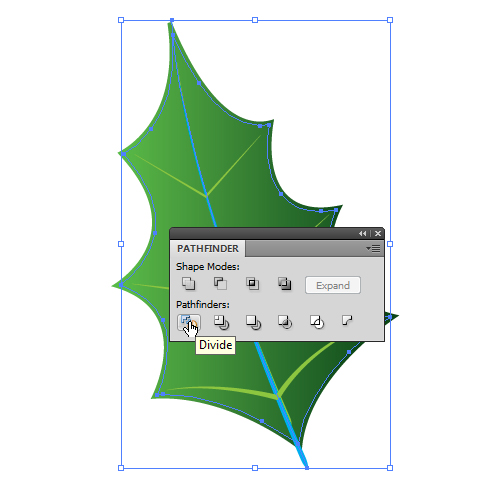

Select the new path and the smaller shape of the mistletoe and under the Pathfinder Panel hit the Divide button. It will divide our shape in half.

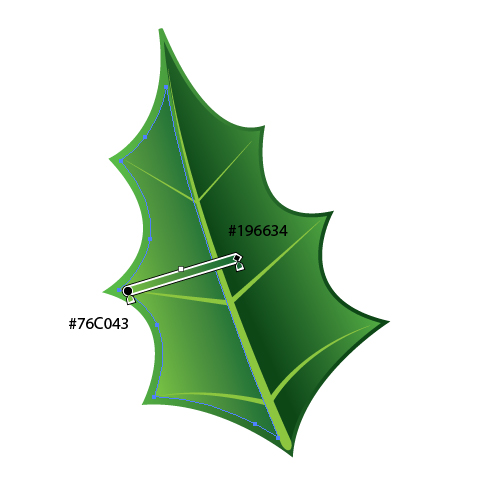

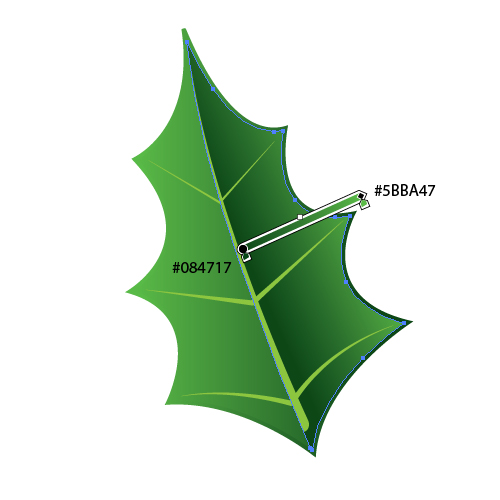

Shift + Ctrl / Cmd + G) the new shape and apply some nice color gradients to the right side of the mistletoe.
We will use the left part to create a smaller shape. Select it and under Object hit Path > Offset Path. Set the value for Offset to
Delete the larger part of the left side and apply the color gradient.

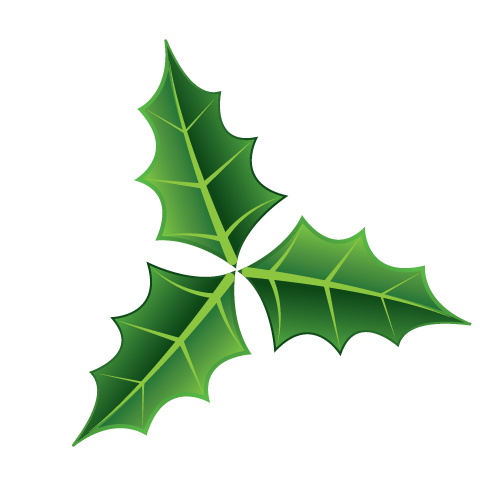

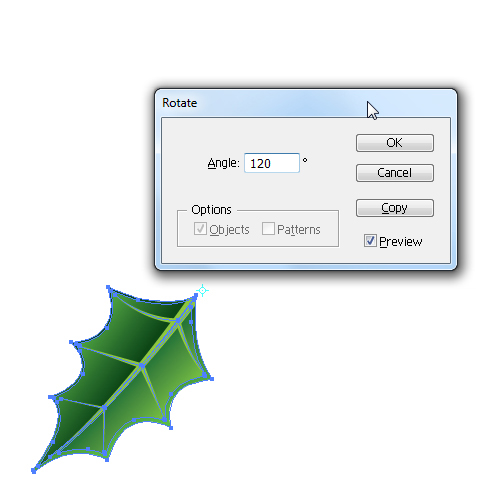

Select all elements of the mistletoe leaf and Group them (
Ctrl / Cmd + G). Grab the Rotate Tool (
R) from the Tool Panel and holding the Alt / Option key on the keyboard click underneath the leaf. Set the value for Angle to
120 degrees and hit the Copy button.
To create another leaf rotated for another
120 degrees simply hit the shortcut on the keyboard
Ctrl / Cmd + D.
As far as the mistletoe leaves are concerned we are done. Now we have to create some berries.

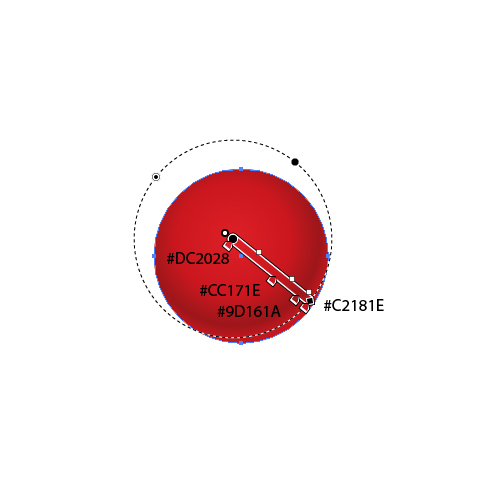

Grab the Ellipse Tool (
L) from the Tool Panel and create a circle (hold the Shift key on the keyboard to create a circle). Apply a red radial gradient.
With the Ellipse Tool (
L) create two ellipses and apply darker radial gradients, like it is shown in the image below.
Ctrl / Cmd + G) all the elements
of the berry, create three copies of the berry and place them on the
leaves. Scale down some of the leaves and berries and rearrange
them until you reach a desirable result.
Now Group (
Ctrl / Cmd + G) all of our
elements for the Christmas sock (Christmas ball, candy cane and the
mistletoe) and place it "in" the sock. Adjust the position and the angle
of the elements as needed.
With a nice floral background and some additional details and shadows
you can turn your illustration into a nice Christmas greeting card.
As you can see, the creation of the Christmas greeting card can be
great fun. Christmas is an amazing holiday characterized by many
wonderful motives and elements. There are numerous things you may
create; snowflakes, gingerbread, presents, snowmen, etc. The creation of
these elements require the use of different kinds of techniques, but
all together you are making a catchy illustration which can be used for
many different purposes.
This time we've had the opportunity to practice again with the Mesh Tool. For more practice feel free to visit the Halloween ghost tutorial where you can find some additional information regarding this useful technique. It may seem that the Mesh Tool
is complicated to use, but actually it's not. Even when the
illustration is finished it is possible to make minor or major changes
in order to make improvements.
If you happen to have any questions feel free to post them in the
comment section below. Hope you like the tutorial. Thank you for
