An Intro to Mesh Tool


Step 1. Creating the Shape

Activate your smart Guides before you start Ctrl+U or view > Smart Guides

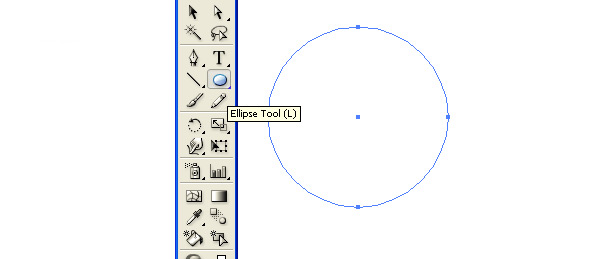

Start off by selecting the Ellipse tool(L) and Draw a perfect circle by pressing shift while you create.

An Intro to Mesh Tool image 1

Step 2. Creating Mesh

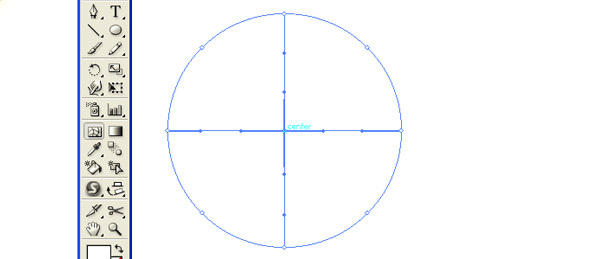

Select mesh tool and click exactly in the center of the circle your smart guide will help you identify that. This is your first mesh division. Our object is to create a cartoonish face i would like to divide the the circle as a face and will shade two sides as cheeks.

An Intro to Mesh Tool image 2

Step 3. Division of the shaded areas

Similarly click and divide the right side and the left side of the circle with clicking on the line running horizontally.

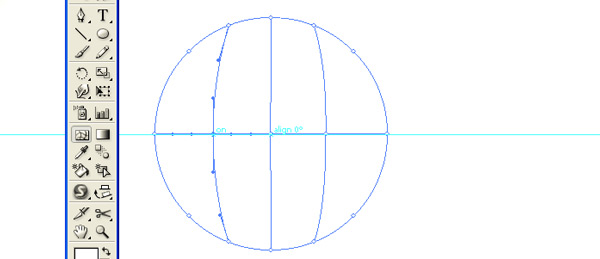

An Intro to Mesh Tool image 3

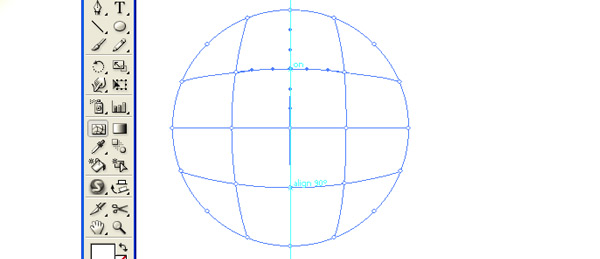

And further divide by clicking similarly on vertical line. The shape of the circle will look something like this.

An Intro to Mesh Tool image 4

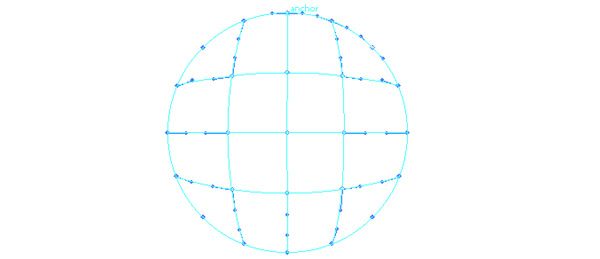

Switch your tool to direct selection tool (A) and select all the nodes on the outer anchor points of the circle which you can do by keeping shift key pressed. when selected it will look something like this:

An Intro to Mesh Tool image 5

Step 4. Shading your work

Open up your color palette F6 and drag to a light shade of blue you will see the effect changing in your shape.

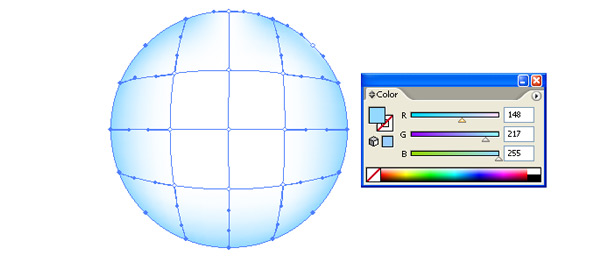

An Intro to Mesh Tool image 6

If you miss an anchor point don't worry just drag the color from your palette and drop over the missed anchor point.

Here is how it will look like at this point.

An Intro to Mesh Tool image 7

Select the middle anchor points as show below and pick up a shade of pink.

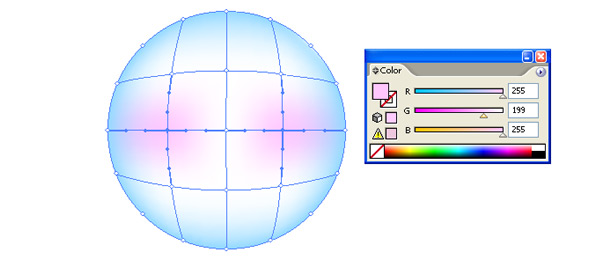

An Intro to Mesh Tool image 8

Step 5. Creating face elements

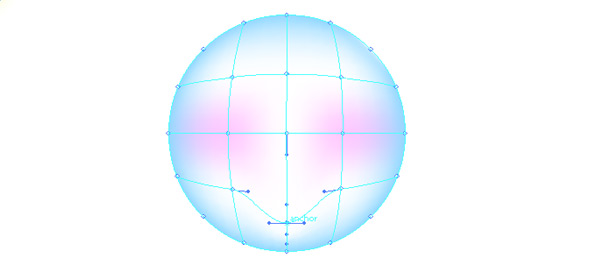

As the object over here is to create a face you can easily select any anchor point and using its handles change the direction of the color blending, here a chin is required so i will just play around a little with the lower anchor point in the middle. And shift it down a bit.

An Intro to Mesh Tool image 9

Be careful not to un-blend the perfect blending or your chin will have a cut!

Draw a few face elements.

An Intro to Mesh Tool image 10

Using similar technique i will draw now eyes. Here are some steps i used to create a set of Cartoonish looking eyes.

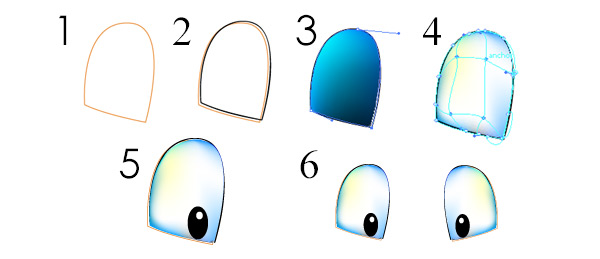

An Intro to Mesh Tool image 11

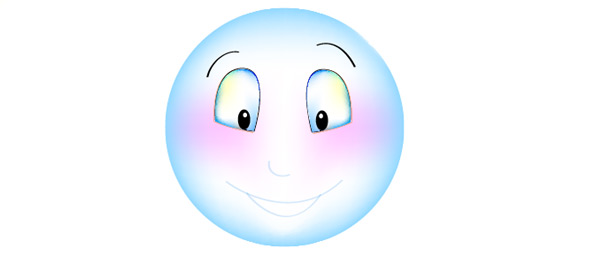

Place them over your face.

An Intro to Mesh Tool image 12

Here is the finished face you can save it as a symbol and place it over any interesting background. This character was created for a children's program here is a preview of one of the screen shots of the final scene.

An Intro to Mesh Tool Tutorial: Final Result
