The header design here on Blog.SpoonGraphics has received many comments of praise and has been the subject of a good few questions and tutorial requests over the past year. So, I thought it was about time I created something which covers some of the processes of creating a similar graphic style. We'll be using many of the same techniques I originally used in the website design, combined with some additional steps to create this neu-retro clean-grunge pop culture vector illustration.
Get started by opening up Adobe Illustrator, create a bunch of simple shapes as resources for future use. Graphics that fit into this pop culture style include overlapping circles, lightning bolts, stripy lines and swirls. A fitting colour scheme would be to limit the artwork to Cyan, Magenta and Yellow.
Create a bunch of concentric circles by copying (CMD+C), pasting in front (CMD+F), then scaling down while holding the Shift and Alt keys. Alternate the colours of the circles.
Group the individual group of circles and duplicate multiple times. Scale and position each group to form a stack of shapes.

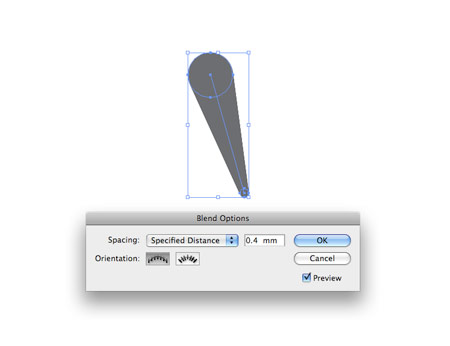

Create a swirl by drawing two circles, one large, one small. Select both and head to Object > Blend > Make. Alter the Blend Options to the minimum spacing in the Specific Distance option.

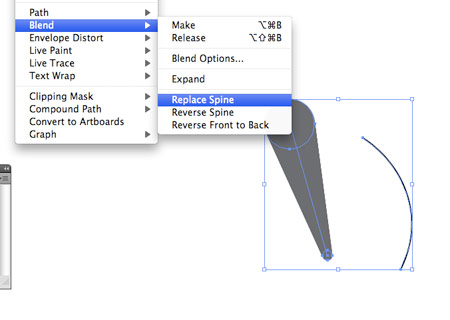

Draw a separate curved line, then with the blend and the line selected, go to Object > Blend > Replace Spine.
Repeat the process to develop a bunch of swirls with various curves and directions.

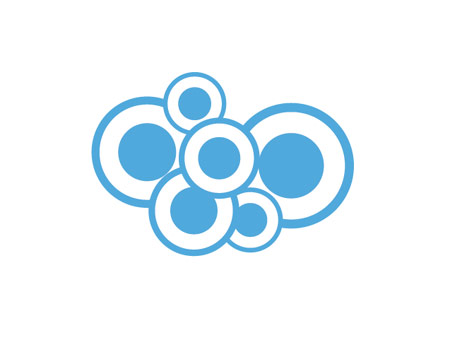

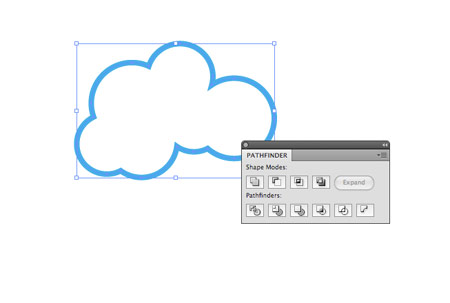

Create a collection of overlapping circles with the Circle Tool, holding shift to keep the shapes proportional. With a bunch of shapes selected use the Add to Shape Area option from the Pathfinder window to merge them all together.
A variation of the circles would be to simply swap the fill for a thick stroke.

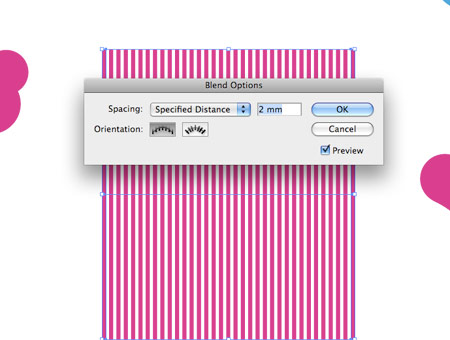

Draw a long, thin rectangle on the artboard, duplicate and move to one side. Use the Blend tool to create a range of stripes. Go to Object > Expand to convert the effect into a shape.

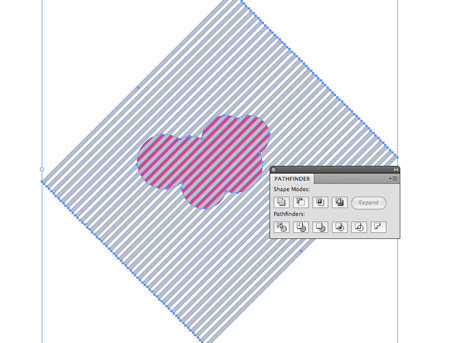

Rotate and overlap the collection of stripes onto a merged group of circles. Use the Subtract from Shape Area Tool from the Pathfinder to cut stripes into the underlying object.

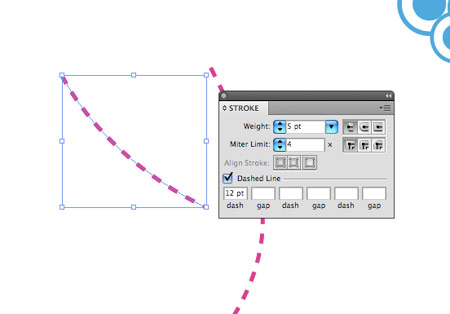

Draw a couple of curved lines with the Pen Tool, add a stroke and select the Dashed Line option.
These few simple steps soon generate a little toolbox of resources to use in the illustration. We can use these elements in various colours to build up the collage.

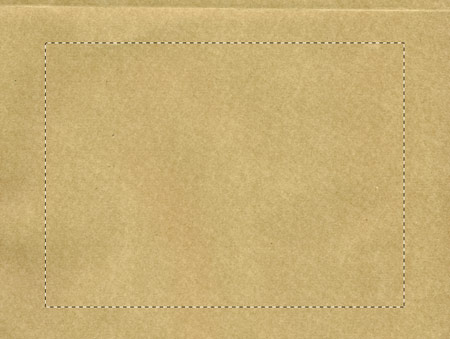

Open up a paper texture in Adobe Photoshop, you can find this one from the collection of 5 brown paper textures post here on Blog.SpoonGraphics.
Paste in a selection of paper into a new document, adjust the colours and saturation to give a subtle paper texture. Use the Warp option in the Transform command to add a little curl to the corner.
Begin pasting in the vector elements from Illustrator into Photoshop, position the shapes below the paper layer to give the impression that they're creeping from behind.
Continue pasting in various elements, alternating between Cyan, Magenta and Yellow. (Photoshop Tip: Use the Auto Select Layer option for the Move Tool to easily select and move elements without the need to find the appropriate layer in the layers palette)

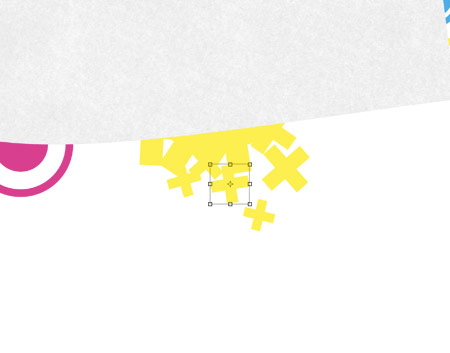

Add some interest by pasting in elements so that they interact with the orientation of the artwork, so for instance add elements that appear to be falling or dripping vertically down the page.

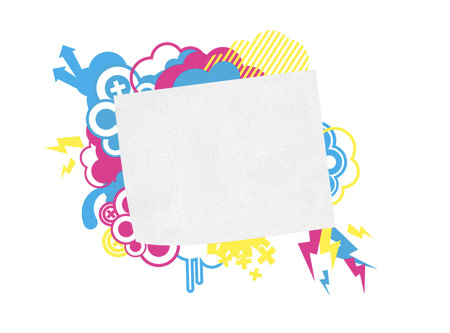

After a while the shapes will begin to fill out the background area and produce a layered effect as they span further outwards.

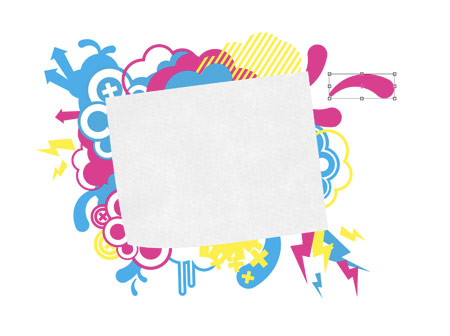

Using the same shape, but in various positions can help flesh out the illustration. Use the rotate and flip-horizontaly options to give variation to the same element.
Finish off the composition with some tiny details and check over the layout for any elements that interfere with each other.

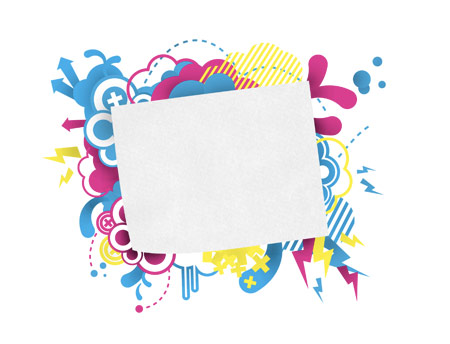

So far the vector elements add plenty of detail and dynamism to the illustration, but they do tend to look a little flat. Use the Burn Tool to draw in some subtle shadows. Set the tool to target Midtones, at a very low exposure (20%).
These little additions really start to bring the illustration to life and lift it from the screen.
Repeat the process, but this time with the Dodge tool to add some very subtle highlights to the elements.

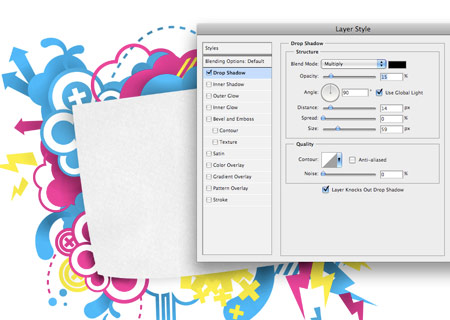

Select the main central paper area, and add a soft drop shadow. Use a large size, but low opacity to give the most realism.

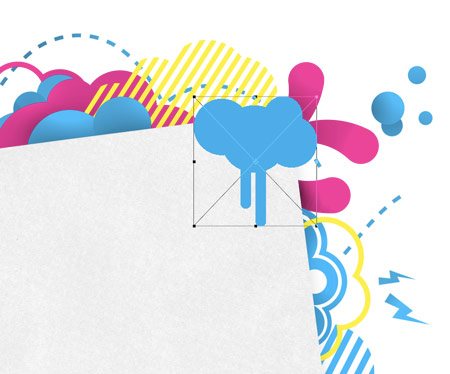

Paste in a couple more vector elements, this time above the paper area.

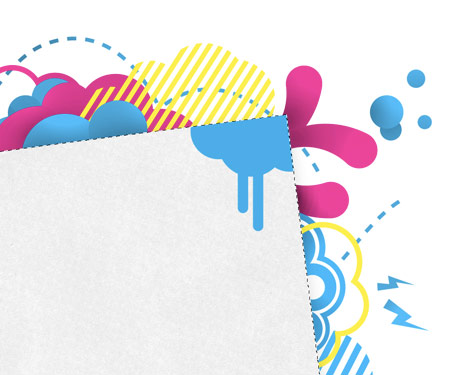

CMD-Click on the paper layer's thumbnail to make a selection, CMD-Shift-I to inverse and delete out the excess from the vector shape.

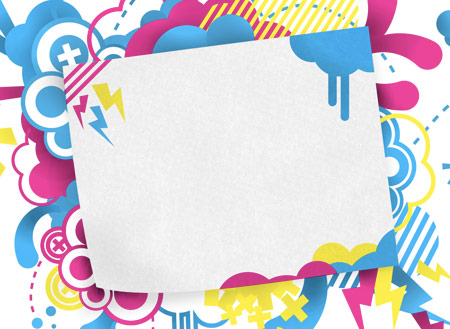

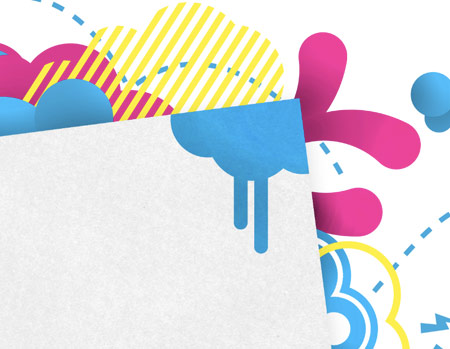

Set the blending mode to Multiply to bring through the paper texture, and touch up with a brush of the Burn Tool.
The main collage portion of the illustration is now complete. Let's move on to adding some content to the central page area.
Add some type to the design, here I've used the word 'design', split over two lines and set in a heavy, rounded font.
Continue adding various elements to the central design to fill out the space. Rotate the elements to match the orientation of the direction of the paper.
A few tweaks later and the design is taking shape. I made some decisions to continue the colour scheme into the main elements, but reduce the opacity to avoid them taking too much focus.
Paste in a high resolution texture into the background of the document. This one is from the highly useful Lost and Taken website.
To finish off the illustration, use a couple of high resolution spraypaint brushes to add some fine overspray in the Cyan, Magenta and Yellow colours.
