How To Create a Mexican Lucha Libre Mask Pin Badge

Follow this step by step Illustrator tutorial to create a Mexican Lucha Libre inspired badge design. We'll be creating a vector mask design out of various shapes and elements before pulling the whole design together onto a template to form a print ready 25mm button pin badge.

image 1

The design we'll be creating takes inspiration from the awesome masks used in Mexican Lucha Libre wrestling. By merging together various shapes and adding bold colours we can create a cool stylized illustration that will work well at small sizes as a button badge.

image 2

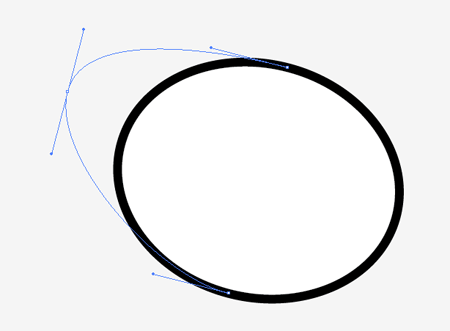

Open up Adobe Illustrator and draw an oval onto the artboard. Rotate the oval slightly, then grab and move the left point further outwards with the Direct Selection Tool.

image 3

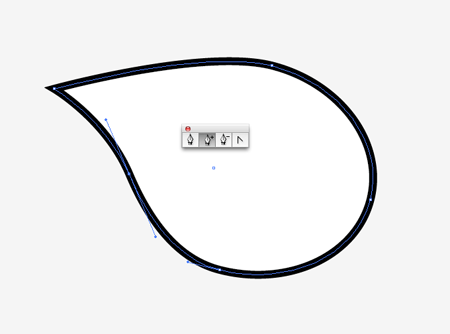

Use the Convert Anchor Point tool to remove the bezier curves to form a sharp point, then use the Add Anchor Point tool to insert an extra point in the lower left portion of the path. Move this new point inwards and rotate the curves slightly.

image 4

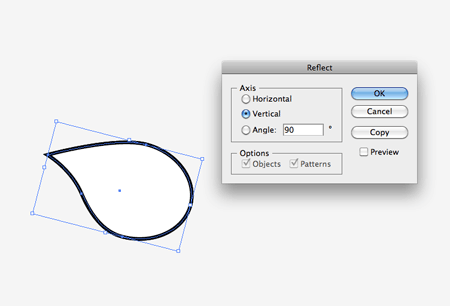

With the teardrop shape selected go to Object > Transform > Reflect and choose the Vertical option.

image 5

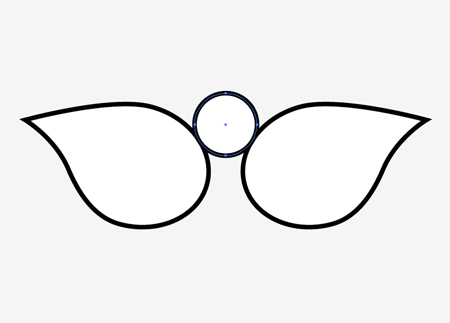

Position the duplicate at an appropriate distance to represent the outline of the eye section of the mask. Draw a small circle and position it accurately between the two elements so the paths overlap exactly.

image 6

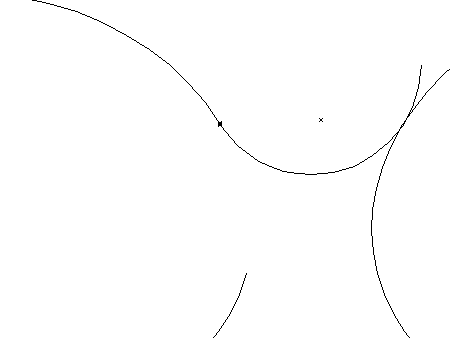

Toggle outline mode (CMD+Y) and zoom right in to the design in order to accurately clip the paths with the Scissors tool. Use the Direct Selection tool to delete the unwanted paths, then join each end point to form one smooth outline.

image 7

Draw and position two more oval shapes overlapping the eye piece to finish off the remainder of the mask outline.

image 8

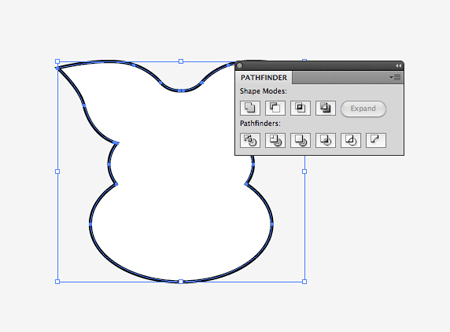

Select all three shapes and blend them together using the Merge option from the Pathfinder tool.

image 9

Draw a smaller oval and drag the top most point downwards to squash the shape. Rotate and position this object as an eye hole, then reflect a duplicate and position it on the opposite side.

image 10

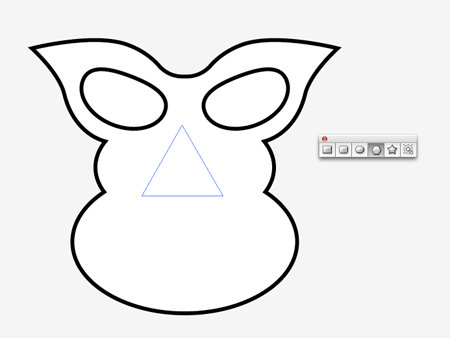

Use the Polygon tool to draw a triangle by pressing the downward cursor key to reduce the number of points.

image 11

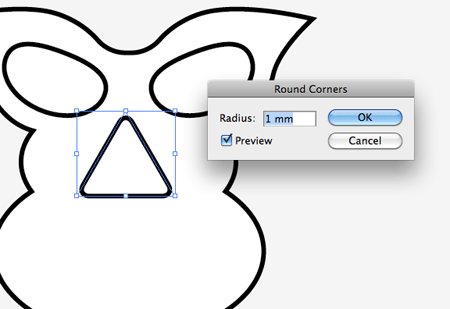

Go to Effect > Stylize > Round Corners and enter 1mm in the Radius field.

image 12

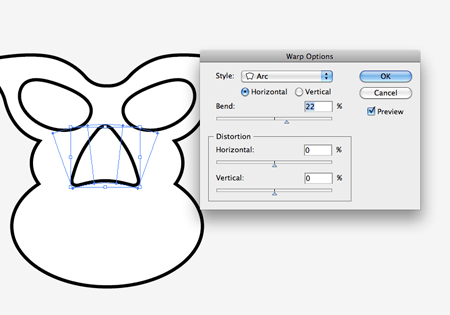

Head to Object > Envelope Distort > Make with Warp and adjust the Bend slider to around 22% to manipulate the shape of the triangle. Go to Object > Expand and select just the Object checkbox to make the effect permanent.

image 13

Draw an Rounded Rectangle as a mouth piece and give it a slight bend using the Envelope Distort tool. Remember to expand the effect to convert it into an editable shape.

image 14

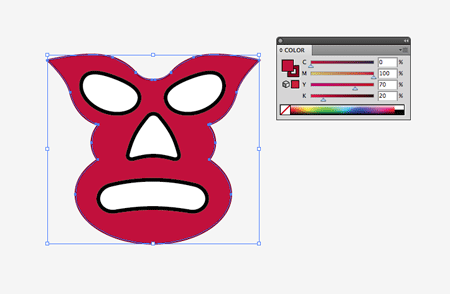

The basic linework is complete, so let's add some colour. Give the main mask shape a bold red fill, then add a 0.5pt stroke with a slightly darker red tone.

image 15

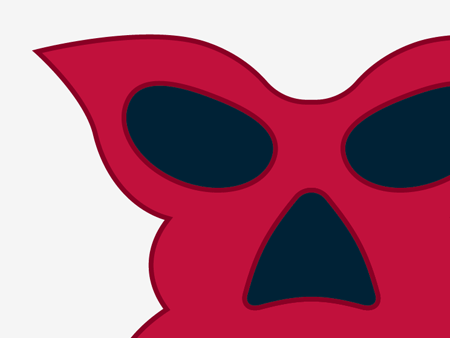

Give the facial feature elements a deep blue fill and add the same dark red stroke as the mask outline.

image 16

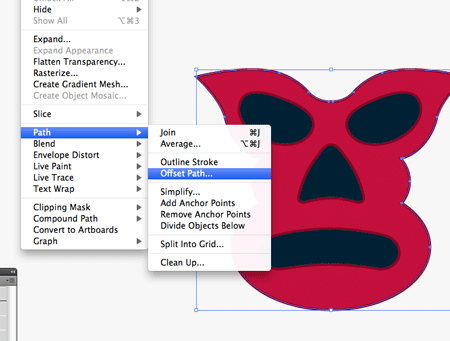

Select the main outline and go to Object > Path > Offset Path. Enter -0.4mm in the options window.

image 17

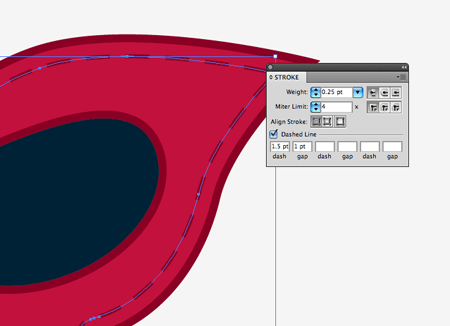

Clear the fill from this new offset path and alter the Stroke to 0.25pt with the Dashed setting activated with figures of 1.5pt dash and 1pt gap.

image 18

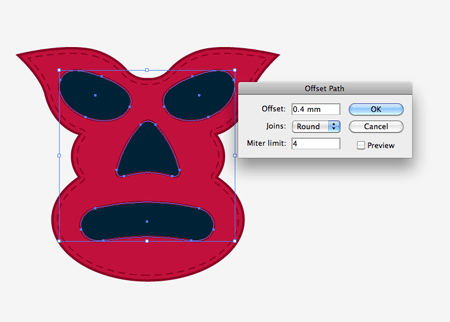

Select the facial elements and choose the Offset Path setting again, this time enter 0.4mm in the options window. Give these new paths the same dashed stroke styling.

image 19

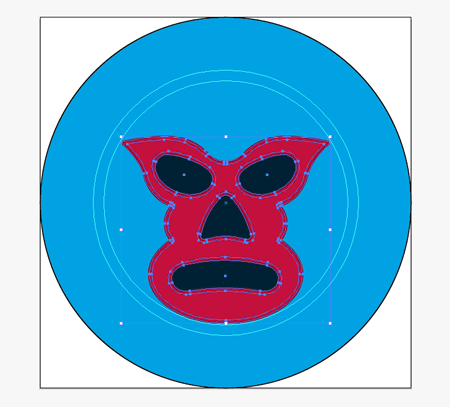

Add a circle with a cyan fill to preview how the finished badge design will look. Use the shortcut CMD+Shift+[ to send the circle behind the mask elements.

image 20

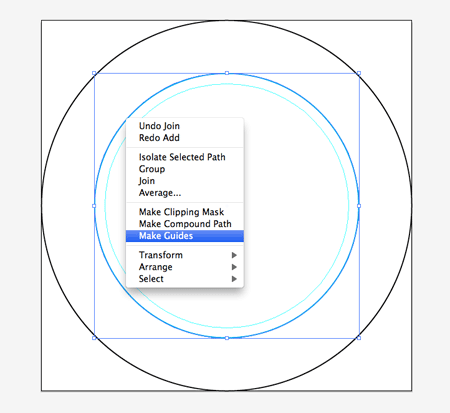

Create a new document for the badge artwork template at 35x35mm. Within this document select the Circle tool and click on the artboard. Enter the figures of 35x35mm and center this circle with the Align Palette. Draw and center two more circles at 25x25mm and 23x23mm then right click these smaller shapes and select Make Guides.

image 21

The larger 35x35mm circle takes into consideration the bleed of the design that wraps around the back of the pin badge. Fill this circle with the blue background. The smaller two circles represent the final 25mm pin badge size and a safety margin to avoid having the design lost on the edges. Scale and position the mask design inside this safety margin.

image 22

Your vector Lucha Libre badge design file is all ready for print. Take a copy of the design into Photoshop to quickly crop the artwork and add a Bevel effect to preview how the final badge will look.
